Pro-Edge 50 (EB121)
IWM PRO SERIES · EDGEBANDER (SKU: EB121)

Pro-Edge 50

Heavy duty automatic edgebander for growing factories. Features pre-milling, automatic gluing, pneumatic guillotine, dual-motor end trimming, scraping, and buff polishing.

Request Official Quote
IWM Pro-Edge 50 Edgebander
PREMIUM QUALITY Machines that last
1 YEAR WARRANTY Full peace of mind guaranteed
WE DELIVER Through Africa and beyond
Fully Automatic Stations

Seamless Finishing

Equipped with pre-milling, automatic edge feeding & gluing, pneumatic guillotine, rough/fine trimming, surface scraping, and buff polishing for immaculate joints.

Feeding speed: 16 m/min

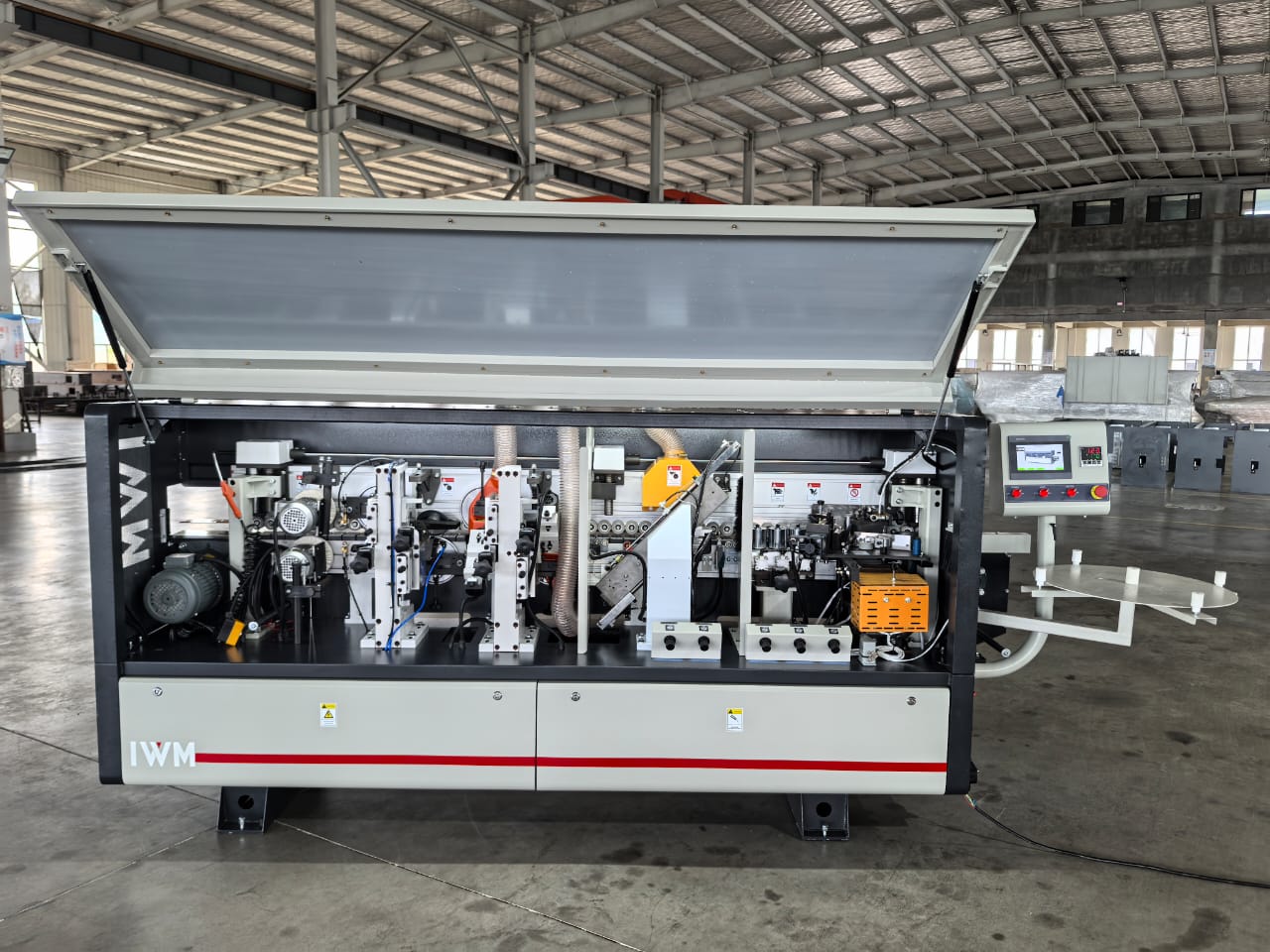

Pro-Edge 50 Open View
PLC Touch Screen Control

Intuitive Setup

Centralized PLC control panel provides quick station readouts, accurate temperature controls, and easy fine-tuning adjustments for fast job changes.

Handles 0.4 mm to 3.0 mm edge-band tape

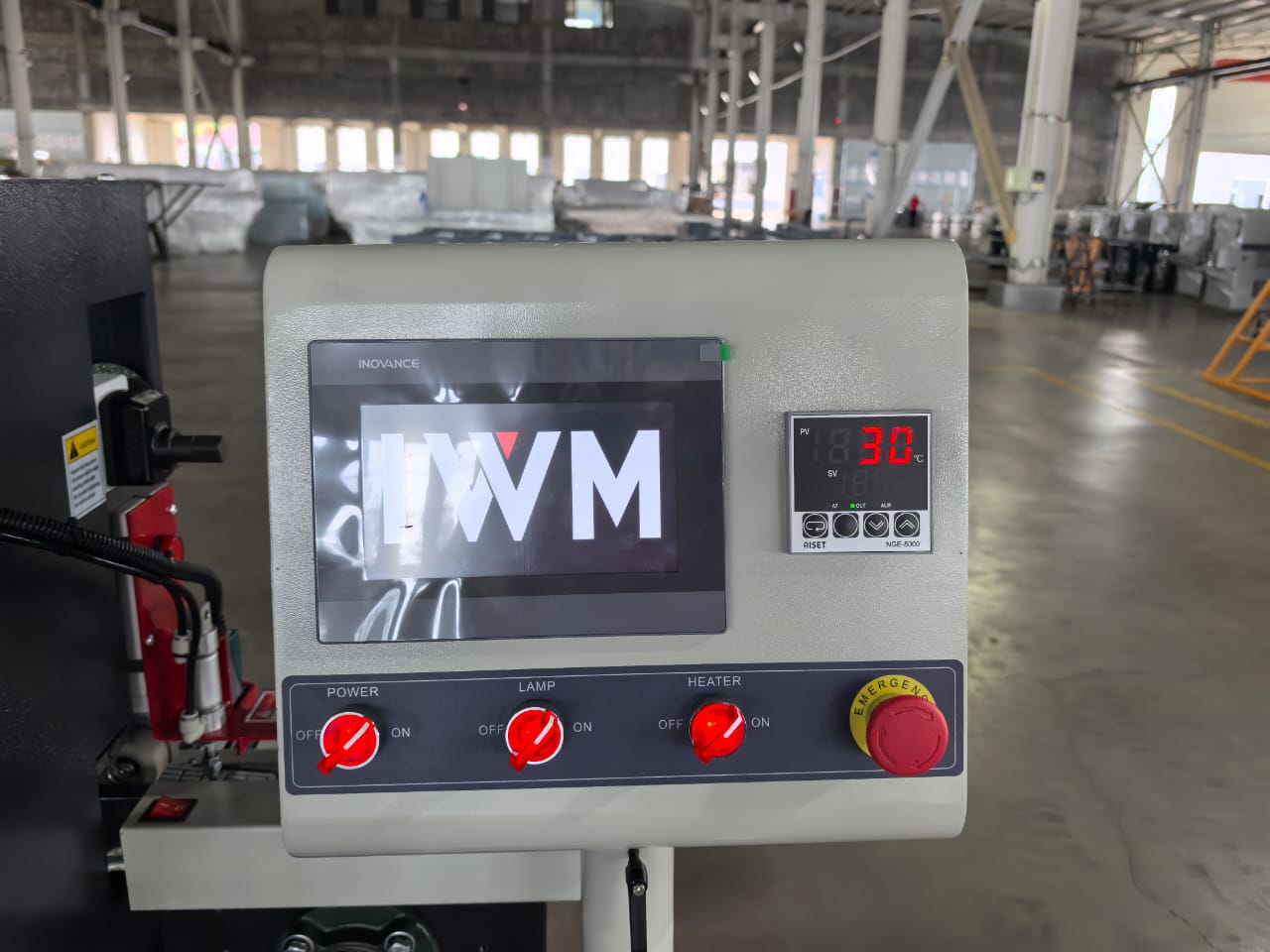

Pro-Edge 50 PLC Touch Screen
DETAILED SPECIFICATIONS

Pro-Edge 50 Technical Specs

Model Code / SKUEB121
Working StationsPre-Milling, Gluing, Guillotine, End Trimming, Fine Trimming, Scraping, Blower, Buffing
Feeding Speed16 m/min
Total Power7.5 kW (Three-Phase)
Panel Thickness Range10 mm to 60 mm
Edge-band Thickness0.4 mm to 3.0 mm
Min. Panel Size140 × 140 mm
Air Pressure Required0.7 MPa (7 bar)
Overall Dimensions3130 × 750 × 1400 mm
Net Weight941 kg
Control SystemPLC Digital Touch Screen Panel
Warranty1 Year Included
Request Official Quote
DOCUMENTATION

Download Machine Manual

Download the official operator manual, maintenance schedules, and electrical diagrams for the IWM Pro-Edge 50 Edgebander.
