Pro-Cut 50 (PS122)
IWM PRO SERIES · PANEL SAW (SKU: PS122)

Pro-Cut 50

Industrial 3.2m Sliding Table Panel Saw. Built tough for over 20 years with scoring blade chip-prevention and heavy 5.5 kW motor for solid wood, MDF, and chipboard.

IWM Pro-Cut 50 Panel Saw Front View
PREMIUM QUALITY Machines that last
1 YEAR WARRANTY Full peace of mind guaranteed
WE DELIVER Through Africa and beyond
Sliding Table

3.2m Heavy-Duty Table

Processes full board sizes effortless. Designed for high repeatability, maximum structural support, and vibration-free feeding.

3200 mm sliding table capacity

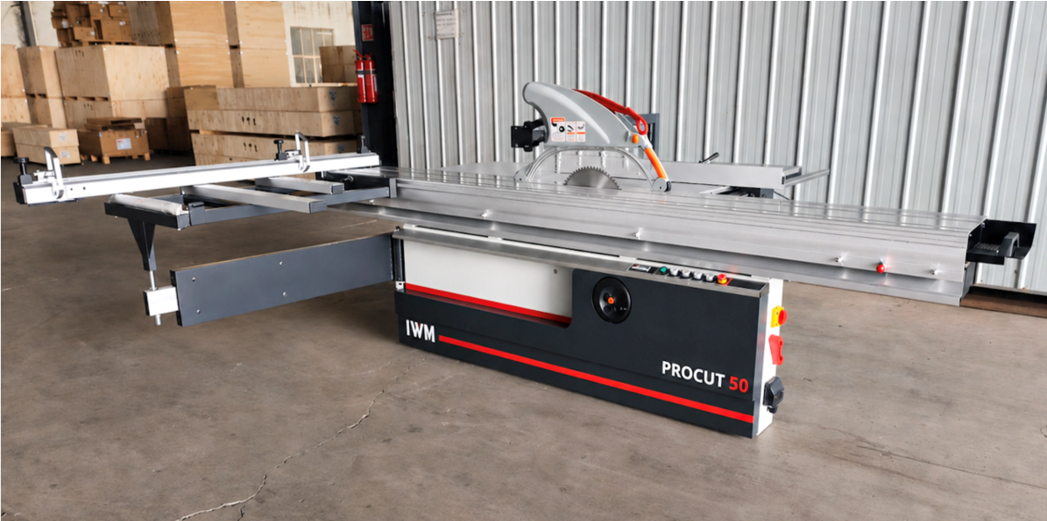

Pro-Cut 50 Angled Detail
Dual Blade System

Clean Melamine Cuts

Equipped with a high-speed 8000 RPM scoring blade ($\Phi 120 \times \Phi 20\text{ mm}$) preventing chip-out on melamine boards, MDF, and laminates.

Manual tilt to 45° with rise and fall
Pro-Cut 50 Side View
DETAILED SPECIFICATIONS

Pro-Cut 50 Technical Specs

Model Code / SKUPS122
Sliding Table Length3200 mm
Main Motor Power5.5 kW (Three-Phase)
Scoring Motor Power1.1 kW
Main Blade SizeΦ250 – Φ315 mm
Scoring Blade SizeΦ120 × Φ20 mm
Main Blade Speed4000 / 6000 rpm
Scoring Blade Speed8000 rpm
Blade Tilt Range0° to 45° (Manual)
Rip Fence Capacity1200 mm
Dust Ports120 mm Base / 50 mm Guard
Voltage / Frequency380V / 50Hz / 3PH
Net Weight700 kg
Warranty1 Year Included
Request Official Quote
DOCUMENTATION

Download Machine Manual

Download the official operator manual, technical wiring diagrams, and setup guide for the IWM Pro-Cut 50.
